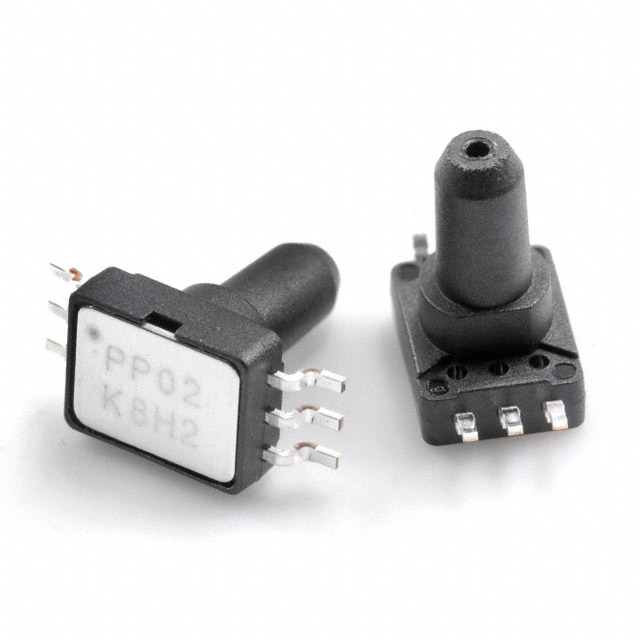

OMRON ultra-small low-power MEMS Pressure Sensor
? Ultra-small size with a length of 6.1mm ¡Á a width of 4.7mm ¡Á a height of 8.2mm.
? Compared with capacity pressure sensors, the electrical characteristics are more excellent.
? The measuring pressure range is 0 ~ 37kPa.
Bias voltage:-2.5¡À4
Range voltage: 31.0¡À3.1mV
? 0.2MW low power consumption.
? Little influence on temperature.
Range voltage: ¡À 1.0%F.S.
Bias voltage: ¡À 3.0%F.S.
OMRON 2SMPP-02: Series
OMRON 2SMPP-02 series: MEMS Pressure Sensor – 2SMPP-02
$10.00
MEMS measuring pressure sensor,Category: Bottom port type,Construct: SOP,Packing form: plastic anchor bolt sleeve,Pressure type: instrument pressure,Sensing method: Piezoelectric resistance type,Pressure medium: Air,Drive mode: constant current drive,Pressure range: 0 ~ 37kPa,Driving Current: dc100a
Availability: 88888888 in stock
