Groove terminal type (groove width: 5.2)
? Low back 5.2mm wide groove type
? European and American Standard
? Terminals for printed circuit boards
OMRON EE-SX1035: Series

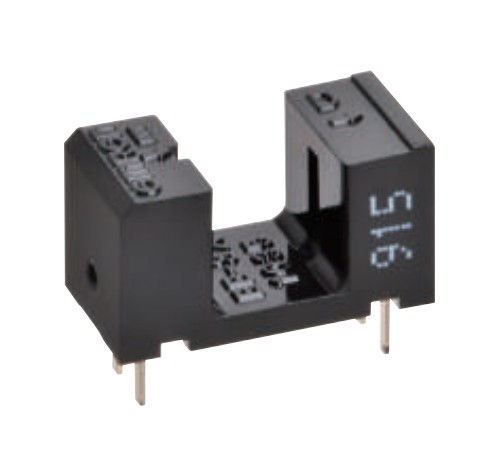

OMRON EE-SX1035 series: miniature photoelectric sensor (transparent) – EE-SX1035
$3.00
Miniature photoelectric sensor (transmission type ¡¤ groove terminal type),Detection method: transmission type (Groove type),Connection method: terminal for printed circuit board,Detection distance: 5.2mm (groove width),Height: 6.7mm (low back wide groove type),European and American Standard,Aperture Size: luminous side/light receiving side same as 1 ¡Á 1mm,Output form: phototransistor,Peak wavelength of light emission: 940nm,Maximum spectral sensitivity wavelength: 850nm,Minimum photocurrent: 0.5mA,Maximum forward current: 50mA,Rise Time: 4 seconds,Drop Time: 4 seconds,Shell material: Polycarbonate
Availability: 88888888 in stock
