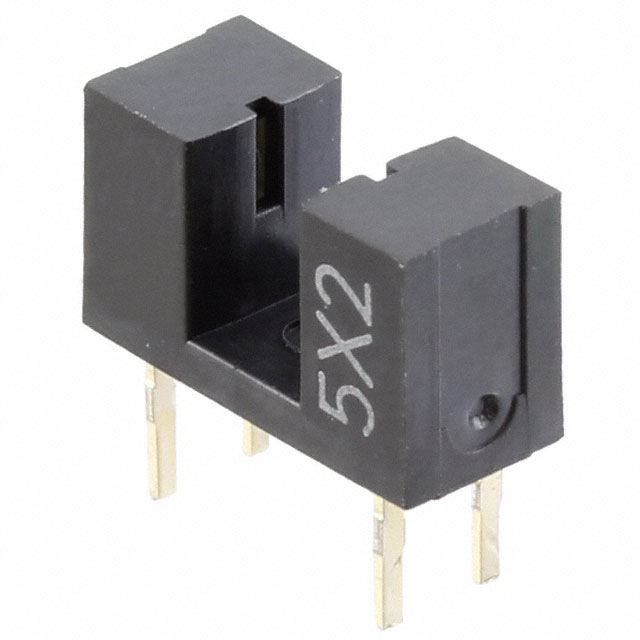

OMRON EE-SX1055 series: miniature photoelectric sensor (transparent type ¡¤ small groove ¡¤ low back type ¡¤ 2.8mm) – EE-SX1055

Miniature photoelectric sensor (transparent type ¡¤ small groove terminal type),Detection method: transmission type (Groove type),Connection method: terminal for printed circuit board,Groove width: 2.8mm,Height: 5.4mm (low back type),Hub with anti-reverse plug,Aperture Size: The luminous side/light receiving side is the same as 1.7 ¡Á 0.5mm,Output form: phototransistor,Peak wavelength of light emission: 940nm,Maximum spectral sensitivity wavelength: 850nm,Minimum photocurrent: 0.5mA,Maximum forward current: 50mA,Rise Time: 4 seconds,Drop Time: 4 seconds,Shell material: PBT
