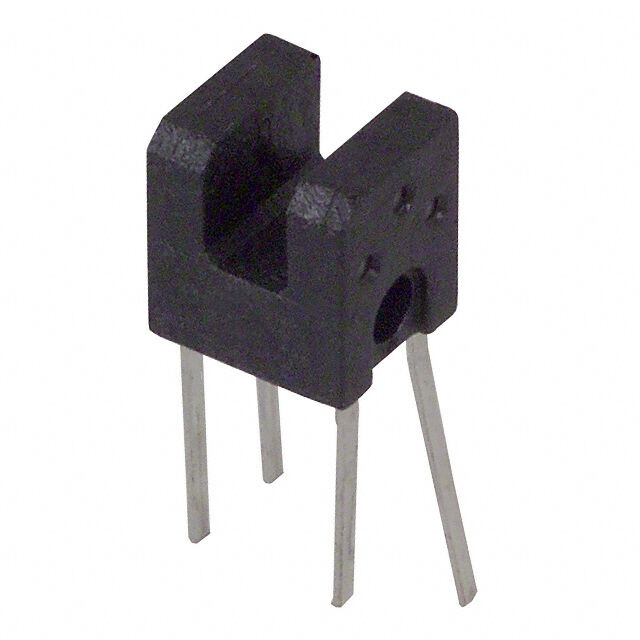

OMRON EE-SX1103 series: miniature photoelectric sensor (transparent type ¡¤ small groove ¡¤ low back type ¡¤ 2mm) – EE-SX1103

Miniature photoelectric sensor (transparent type ¡¤ small groove terminal type),Detection method: transmission type (Groove type),Connection method: terminal for printed circuit board,Groove width: 2mm,Height: 5.2mm (low back type),Aperture Size: The luminous side/light receiving side is the same as 1.2 ¡Á 0.4mm,Output form: phototransistor,Peak wavelength of light emission: 950nm,Maximum spectral sensitivity wavelength: 800nm,Minimum photocurrent: 0.5mA,Maximum forward current: 50mA,Rise time: 10 seconds,Drop Time: 10 seconds,Shell material: PPS,Lens: Epoxy resin,Weight: 0.2g
