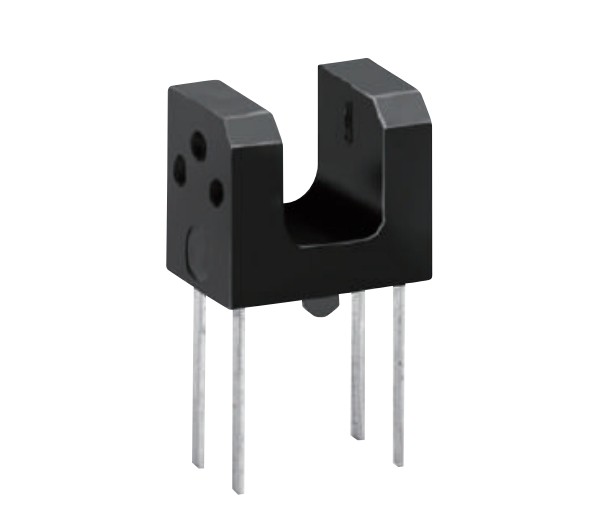

OMRON EE-SX1106 series: miniature photoelectric sensor (transparent type ¡¤ small groove ¡¤ low back type ¡¤ 3mm) – EE-SX1106

Miniature photoelectric sensor (transparent type ¡¤ small groove terminal type),Detection method: transmission type (Groove type),Connection method: terminal for printed circuit board,Detection distance: 3mm (groove width),Height: 5.4mm (low back type),Hub with anti-reverse plug,Aperture Size: The luminous side/light receiving side is the same as 1.2 ¡Á 0.4mm,Output form: phototransistor,Peak wavelength of light emission: 950nm,Maximum spectral sensitivity wavelength: 800nm,Minimum photocurrent: 0.2mA,Maximum forward current: 50mA,Rise time: 10 seconds,Drop Time: 10 seconds,Shell material: PPS,Lens: Epoxy resin
