Groove terminal type (groove width: 8mm)
? Photoelectric IC output (divided into two types: ON(EE-SX3070) when shading/ON(EE-SX4070) when entering light)
? The applicable power supply voltage is DC 4.5¨C16 V.
? Can be directly connected to C- MOS
? With anti-reverse plug hub
OMRON EE-SX3070: Series

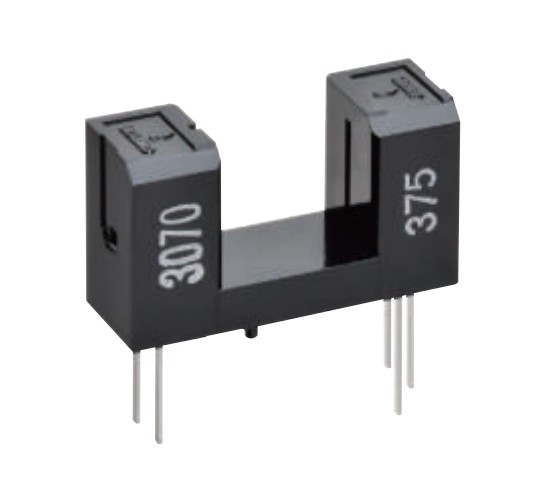

OMRON EE-SX3070 series: miniature photoelectric sensor (transparent) – EE-SX3070
$8.00
Miniature photoelectric sensor (transmission type ¡¤ groove terminal type),Detection method: transmission type (Groove type),Connection method: terminal for printed circuit board,Detection distance: 8mm (groove width),Hub with anti-reverse plug,Aperture Size: The luminous side/light receiving side is the same as 2.2 ¡Á 0.5mm,Output form: photoic,Power supply voltage: DC4.5 ~ 16V,Typical current consumption: 3.2mA,Response frequency: 3kHz,Maximum spectral sensitivity wavelength: 870nm,Peak wavelength of light emission: 940nm,Can be directly connected to C- MOS,Shell material: Polycarbonate,Action mode: ON when shading
Availability: 88888888 in stock
