Groove prefabricated line dustproof type
(Slot width: 3.2)
? Photoelectric IC output (divided into shading time ON(EE-SX3161-W11)/
ON(EE-SX4161-W11)2 types when entering light)
? Adopts a detachable dedicated connector to enhance maintainability.
? Mounting bracket with screws (M3)
? Wire length 610mm MIN. (AWG28)
? Enhanced reliability through the use of solderless wire harness installation
OMRON EE-SX3161-W11: Series

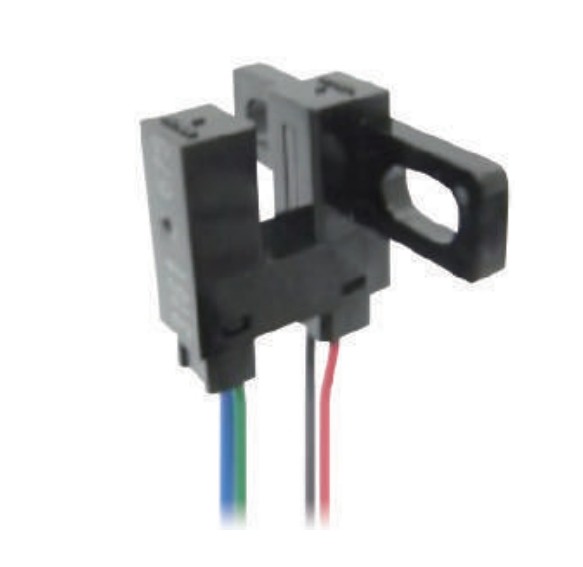

OMRON EE-SX3161-W11 series: miniature photoelectric sensor (transparent) – EE-SX3161-W11
$16.00
Miniature photoelectric sensor (transparent type ¡¤ groove prefabricated line dustproof type),Detection method: transmission type (Groove type),Connection method: prefabricated line type (special connector can be installed and disassembled),Detection distance: 3.2mm (groove width),Hook body with screws (M3),Line length: 610mmMIN.(AWG28),Solder-free wire installation,Aperture Size: light emitting side/light receiving side same as 2.1 ¡Á 1.1mm,Output form: photoic,Power supply voltage: DC4.5 ~ 16V,Typical current consumption: 3.2mA,Response frequency: 3kHz,Maximum spectral sensitivity wavelength: 870nm,Peak wavelength of light emission: 940nm,Shell material: Polycarbonate,Wire insulator: non-aluminum PVC,Action mode: ON when shading
Availability: 88888888 in stock
