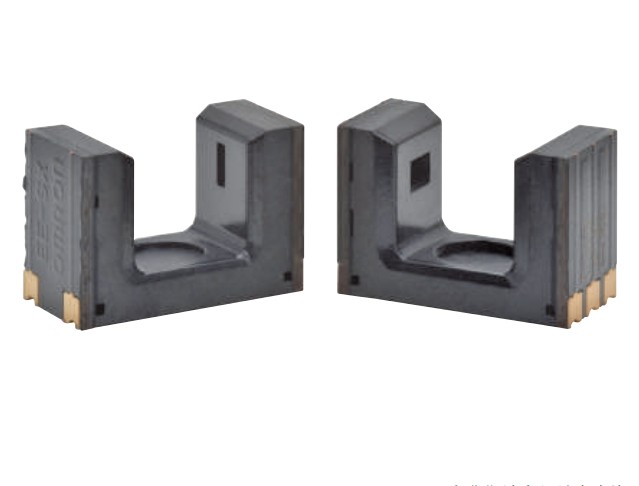

OMRON EE-SX3340/EE-SX4340 series: miniature photoelectric sensor (permeable ¡¤ groove ¡¤ SMD) – EE-SX4340

Miniature photoelectric sensor (permeable type ¡¤ groove type),EE-SX3340/EE-SX4340 series,Shape: small groove ¡¤ SMD type,Detection method: transmission type (Groove type),Connection method: Surface Mounted (SMD),Groove width: 4mm,Aperture Size: light-emitting side 1.04 ¡Á 1.4/light-receiving side 1.4 ¡Á 0.5mm,Output form: photoic,High resolution Aperture: 0.5mm,Peak wavelength of light emission: 940nm,Maximum spectral sensitivity wavelength: 870nm,Operating power supply voltage: 4.5~16V,Typical current consumption: 4mA,Response frequency: 3kHz,Shell material: PPS,Weight: 0.2g,Action mode: ON when entering light,LED current at output ON: 8mA (typical)
