Groove terminal type (groove width: 3.4mm)
? Photoelectric IC output (divided into shading time ON(EE-SX3088)/input time ON(EE-SX4088)
2 types)
? The applicable power supply voltage is DC 4.5¨C16 V.
? Can be directly connected to C- MOS
? Prefabricated line type (EE-SX3088-W11/EE-SX4088-W11)
OMRON EE-SX4088: Series

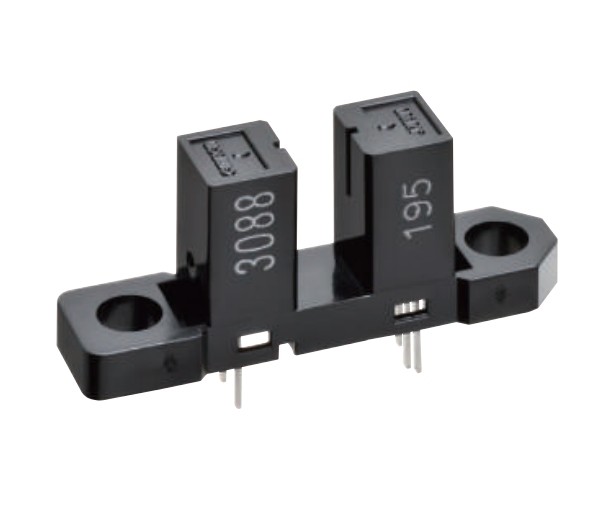

OMRON EE-SX4088 series: miniature photoelectric sensor (transparent) – EE-SX4088
$4.00
Miniature photoelectric sensor (transmission type ¡¤ groove terminal type),Detection method: transmission type (Groove type),Connection method: terminal for printed circuit board,Detection distance: 3.4mm (groove width),Aperture Size: light emitting side/light receiving side same as 1.9 ¡Á 0.5mm,Output form: photoic,Power supply voltage: DC4.5 ~ 16V,Typical current consumption: 3.2mA,Response frequency: 3kHz,Maximum spectral sensitivity wavelength: 870nm,Peak wavelength of light emission: 940nm,Can be directly connected to C- MOS,Shell material: Polycarbonate,Action mode: ON when entering light
Availability: 88888888 in stock
