Groove embedded installation type
(Slot width: 5mm)
? Supports a wide range of PCB and metal?plate thicknesses (t = 0.8mm to 1.6 mm)
? Embedded mounting structure that requires no fixing screws, supporting universal EI connectors manufactured by Tyco Electronics.
Item, enhance maintainability
? Optoelectronic IC output (ON when light is detected)
? Can be directly connected to C- MOS
OMRON EE-SX460-P1: Series

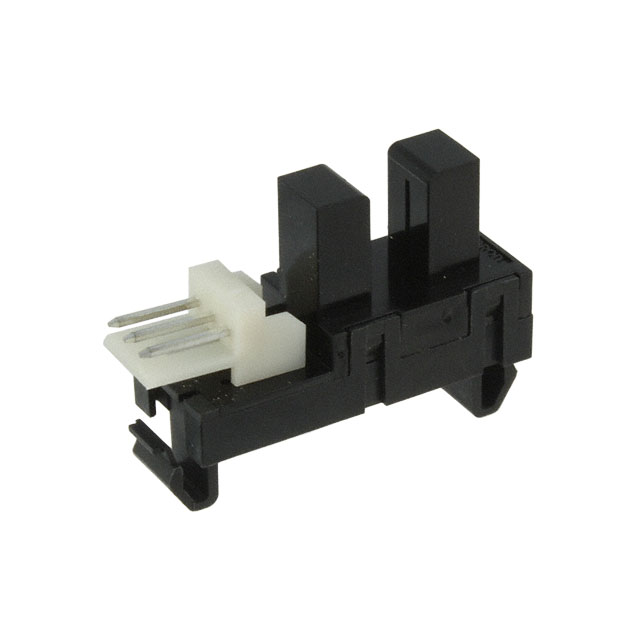

OMRON EE-SX460-P1 series: miniature photoelectric sensor (penetration type ¡¤ groove embedded installation) – EE-SX460-P1
$4.00
Miniature photoelectric sensor (penetration type ¡¤ groove embedded installation type),EE-SX460-P1 series,Detection method: transmission type (Groove type),Installation method: the groove is embedded into the installation type (no fixed screws are required),Connection method: connector connection (Tyco Electronics general EI connector),Groove width: 5mm,Aperture Size: The luminous side/light receiving side is the same as 2.2 ¡Á 0.5mm,Output form: photoelectric IC (ON when entering light),Action mode: ON when entering light,Power supply voltage: 5V ¡À 10%,Maximum current consumption: 30mA,Response frequency: 3kHz,Applicable plate thickness: 0.8 ~ 1.6mm,Can be directly connected to C- MOS,Shell material: Polycarbonate,Mounting hook body: polyamide,Weight: 3g
Availability: 88888888 in stock
