Groove terminal type (slot width: 3.5 mm)
? Photoelectric IC output (divided into two types: ON(EE-SX384) when shading/ON(EE-SX484) when entering light)
? Applicable power supply voltage is DC4.5 ~ 17V
? Can be directly connected to C- MOS
OMRON EE-SX484: Series

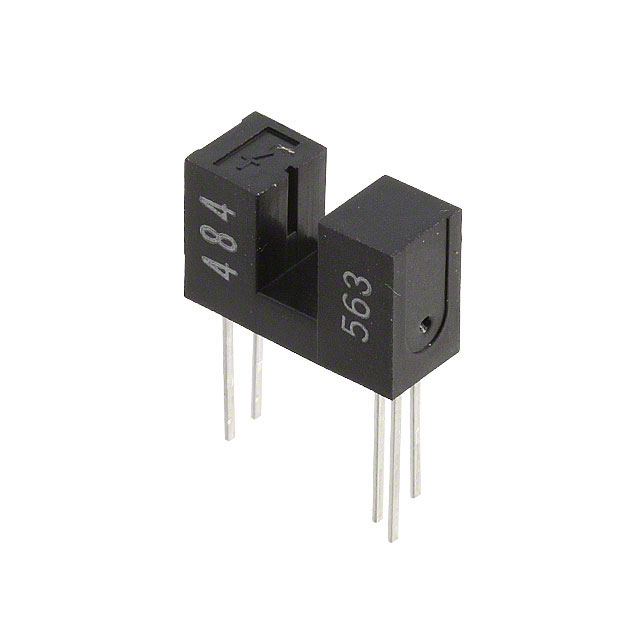

OMRON EE-SX484 series: miniature photoelectric sensor (transparent) – EE-SX484
$6.00
Miniature photoelectric sensor (transmission type ¡¤ groove terminal type),Detection method: transmission type (Groove type),Connection method: terminal for printed circuit board,Detection distance: 3.5mm (groove width),Aperture Size: light emitting side/light receiving side same as 2 ¡Á 0.5mm,Output form: photoic,Power supply voltage: DC4.5 ~ 16V,Typical current consumption: 3.2mA,Response frequency: 3kHz,Maximum spectral sensitivity wavelength: 870nm,Peak wavelength of light emission: 940nm,Can be directly connected to C- MOS,Shell material: PBT,Action mode: ON when entering light
Availability: 88888888 in stock
