Horizontal installation groove terminal type (slot width: 2mm)
? Lateral aperture
? Terminals for printed circuit boards
? The applicable power supply voltage is DC 4.5¨C16 V.
? Optoelectronic IC output (ON when light is detected)
? Can be directly connected to C- MOS
OMRON EE-SX493: Series

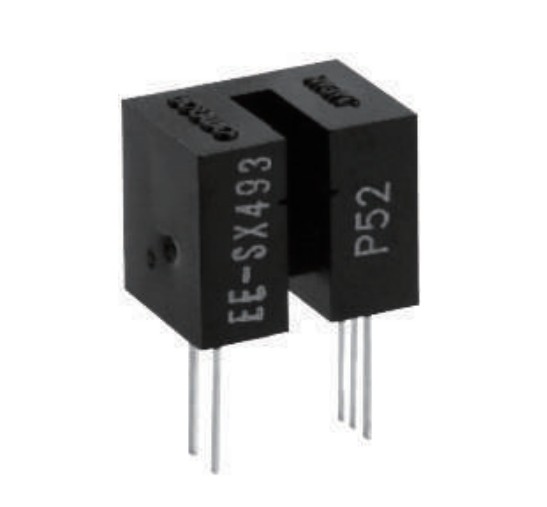

OMRON EE-SX493 series: miniature photoelectric sensor (transparent type ¡¤ horizontal installation groove ¡¤ 2mm) – EE-SX493
$2.50
Miniature photoelectric sensor (transparent type ¡¤ horizontal installation groove terminal type),Detection method: transmission type (Groove type),Connection method: terminal for printed circuit board,Installation direction: Horizontal installation ¡¤ horizontal aperture,Groove width: 2mm,Aperture Size: light-emitting side/light-receiving side is the same as 0.2 ¡Á 2mm,Output form: photoelectric IC (ON when entering light),Action mode: ON when entering light,Power supply voltage: DC4.5 ~ 16V,Typical current consumption: 5mA,Response frequency: 3kHz,Maximum spectral sensitivity wavelength: 870nm,Peak wavelength of light emission: 940nm,Can be directly connected to C- MOS,Shell material: Polycarbonate,Weight: 0.8g
Availability: 88888888 in stock
