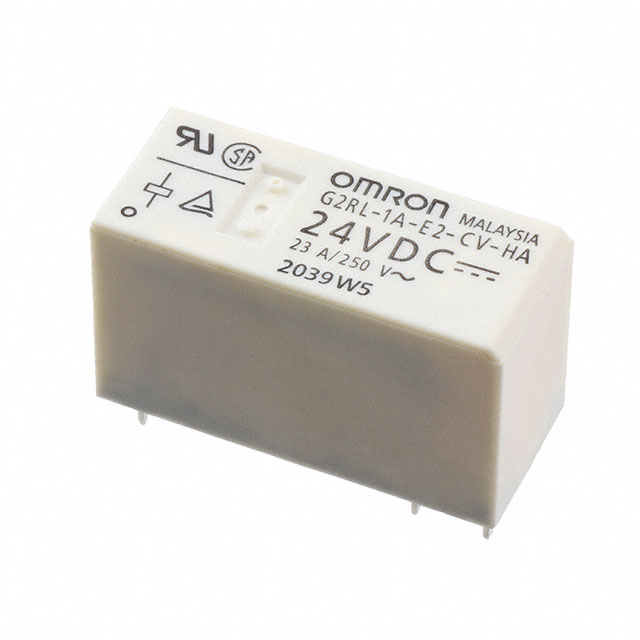

OMRON G2RL series: PCB Power Relay (1 pole/SPST-NO(1a) large capacity and high temperature type) – G2RL-1A-E2-CV-HA-DC24

For high current load switch and
High temperature environment
Compact Single Pole relay ? High Current 23 A switch, better than standard G2RL model.
? Meet the environmental working temperature requirements of 105¡ãC
? Slim shape, the maximum height is only 16.7mm.
? Strengthen insulation between coil and contact, which can realize 10 kV shock resistance voltage.
? Meets the safety standards of EN60335-1 household appliances.
? Insulation gap and creepage distance: 8mm/8mm or more
? Coil insulation type: Class F (UL1446)
