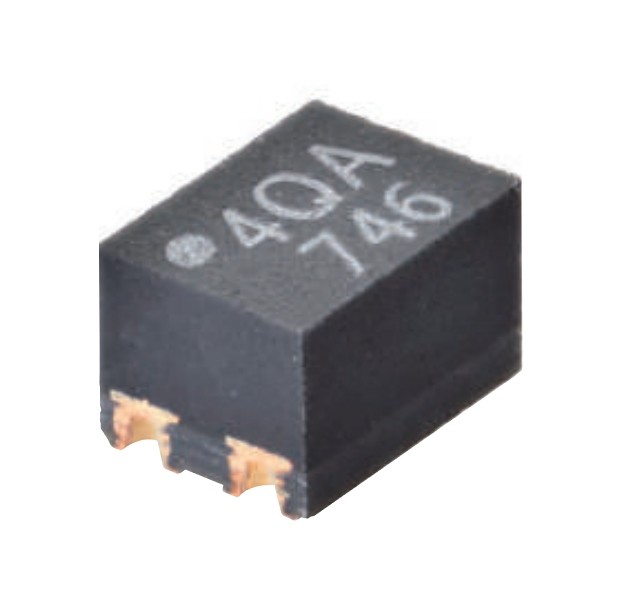

OMRON G3VM series: MOSFET relay (S-VSON(L)4-pin low inter-terminal capacitance & low on-resistance type) – G3VM-41QR10

Small S-VSON(L) package to realize low C ¡Á R MOSFET relay
¡ñ L2.0 ¡Á W1.45 ¡Á H1.3mm S-VSON(L)4-pin small package helps save substrate space
¡ñ each weight is only 0.01g, making the substrate lighter
¡ñ Load voltage 40V/60V
¡ñ G3VM-41QR10: with low c¡Ár = 4.95pF ¡¤ ¦¸, CoFF (standard) = 0.45pF,
RoN (standard) = 11¦¸, with excellent output characteristics in high frequency band
¡ñ G3VM-61QR/61QR3: with low c¡Ár = 13.2pF ¡¤ ¦¸, CoFF (standard) = 12pF,
RoN (standard) = 1.1 ¦¸, with excellent output characteristics in high frequency band
¡ñ G3VM-61QR3: The action time is 0.25ms (maximum),
High-speed response with reset time of 0.2ms (maximum)
¡ñ Supports high temperatures (operating temperature range: -40¡ãC to 110¡ãC)
