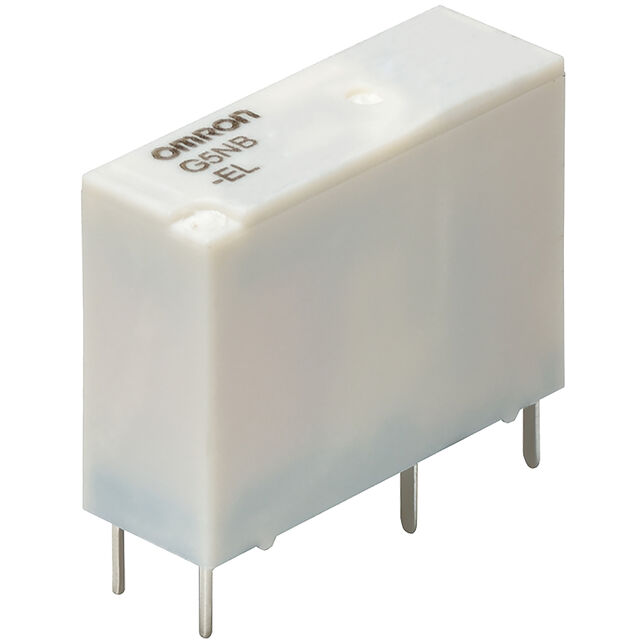

OMRON G5NB series: Power Relay (1 pole high capacity durable type) – G5NB-1A4-EL-HA-SP DC24

Implement 1 pole 7A switch
Small-power relay
¡ñ Small relay, but can be 7A(AC250V), 5A(DC30V)
High capacity switch.
¡ñ When 5A(AC250V) is switched, the durability is achieved for more than 200000 times.
¡ñ comply with the international safety standard of flame retardant “IEC/EN 60335-1”.
¡ñ operating environment temperature: up to 85¡æ. (-CF type is 105 ¡æ)
¡ñ Comply with IEC60079-1 and IEC60079-15
The test was conducted and passed in accordance with Clause 15.5 of IEC/EN 60079-1 for enclosed-break devices (Group II A).
The test was conducted and passed in accordance with Clause 11.2, ¡°Sealed devices,¡± of IEC/EN 60079-15.
