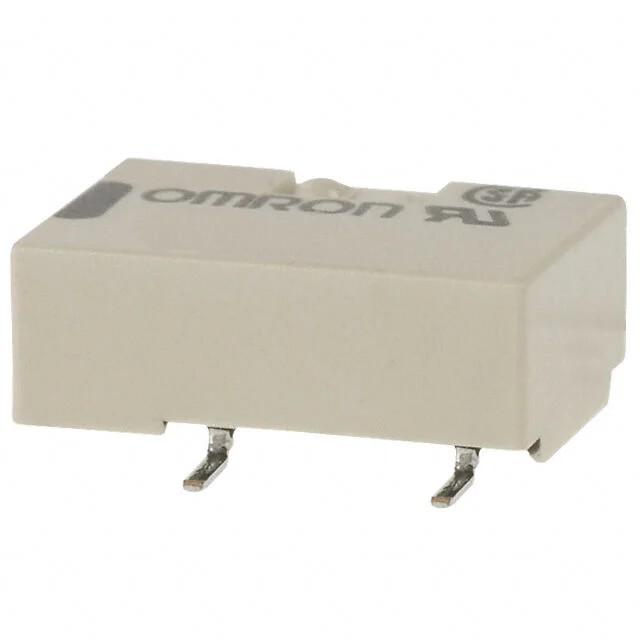

OMRON G6L series: surface mounted relay – G6L-1F DC5

Ultra-thin unipolar planar relay designed to save space
¡ñ actual installation can reduce the actual installation area by 20% and the volume by 64%.
(Compared with G5V-1 of our company), it can handle high-density installation.
{Width 7.0mm ¡Á length 10.6mm ¡Á height 4.5mm(SMD), 4.1mm(TH)}
¡ñ high voltage AC 1,000V resistance between coil contacts,
Impulse Voltage 1.5kV 10160 S (FCC Part68) standard.
The high pressure resistance between the same-pole contacts is 750V.
¡ñ equipped with surface mounting type.
¡ñ standard model with UL/CSA specifications.
