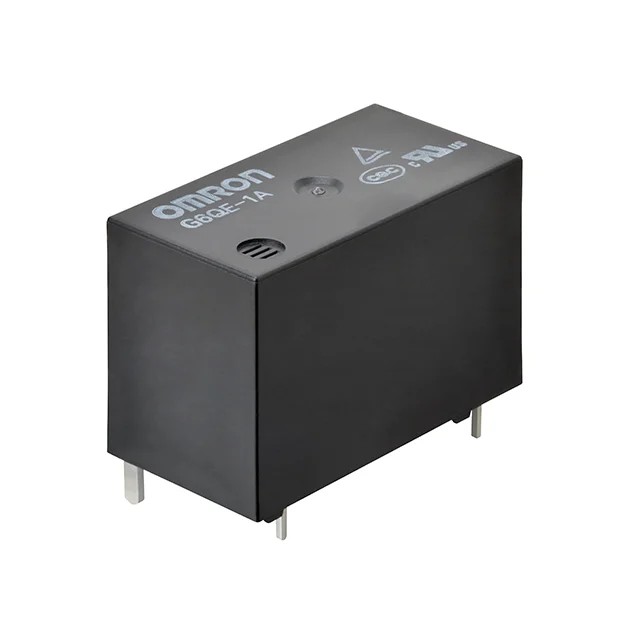

OMRON G6QE series: PCB Power Relay (1 pole/1a) – G6QE-1A 24VDC

Miniature low height
Unipolar power relay
(36A switching current)
? Small, large capacity switch with maximum AC480V 36A (G6QE-1A4 type)
? 10kV shock-resistant voltage (between coil and contact)
? Reduce the voltage applied to the coil after the nominal voltage is applied for 100ms (from the rated Coil voltage
35%), compared with the rated coil power consumption, its power consumption is reduced to 12%
? The product lineup includes standard models that have obtained C- UL, TUV, and CQC certifications, and meet the requirements of electric equipment.
(Less than 300V) model.
? Complies with IEC/EN 60079-15. (Type G6QE-1A4)
Test and pass according to (IEC/EN) 60079-15 11.2 Sealed devices.
