Large capacity PCB relay suitable for motor, resistor and bulb control
? Upgrade the previous Mini ISO plug-in relay to PCB relay.
? It has the characteristics of small size and high heat resistance and can be used in the engine compartment.
? Applicable to the fuse rating of Max.60A.
? Support P. I .P reflow welding.
? Excellent environmental resistance. The operating temperature ranges from-40¡æ to 125¡æ.
? Series locking specifications
OMRON G8PM: Series

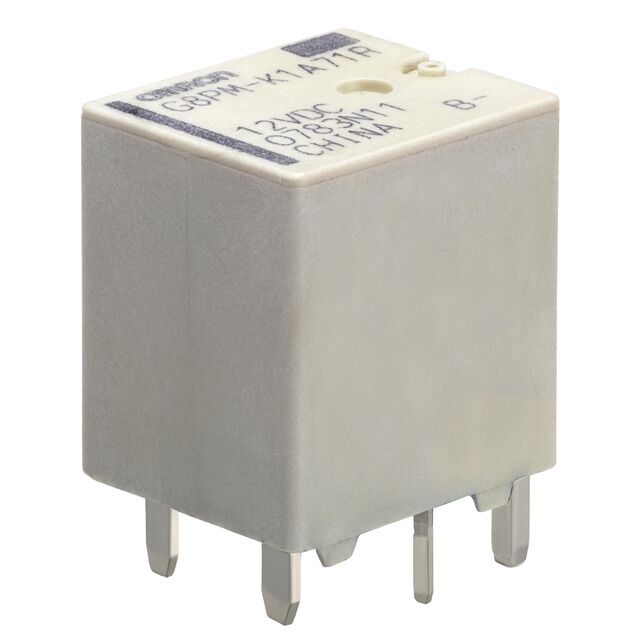

OMRON G8PM series: Vehicle-mounted large capacity PCB relay (1 pole/a contact 2 coil magnetic retention type) – G8PM-K1A71 DC12
$9.00
Vehicle-mounted large-capacity PCB relay,Function Points: 2 winding magnetic retention specifications (locking type),Number of contacts: 1 pole,Contact structure: a contact (SPST),Contact Mechanism: single circuit contact,Protective structure: scaling powder-resistant (RT II IEC61810),Coil polarity: Reverse coil polarity (Terminal 3,6 is negative),Special specifications: Standard,Rated voltage of coil: DC12V
Availability: 88888888 in stock
