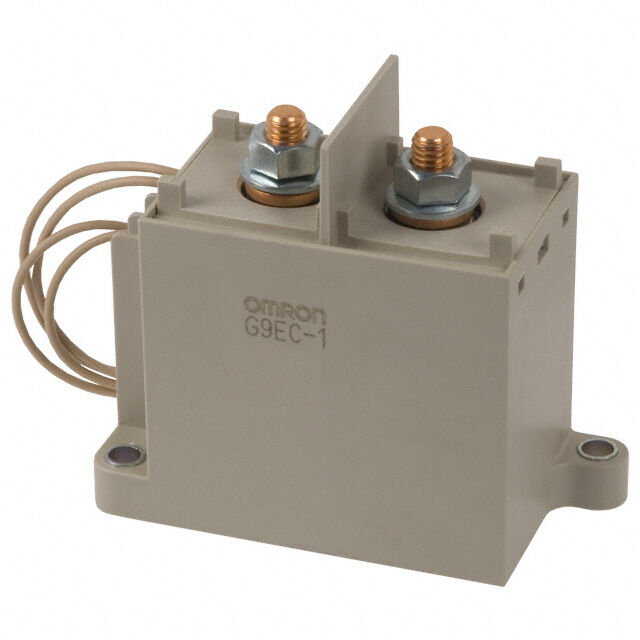

OMRON G9EC series: DC power relay (1 pole/1a contact 200A standard (DC400V 200A)) – G9EC-1 DC48V

DC power relay capable of cutting off high voltage and high current DC load
¡ñ Small size (length 98mm ¡Á width 44mm ¡Á height mm)
Corresponding to DC400V and 200A opening and closing (maximum DC400V and 100A cut off)
Increase DC 1,000V, 100A opening and closing (maximum DC 1,000V, 500A cut-off)
¡ñ The Switch part and the drive part are inflatable sealed structures. Although they are small in size, they can cut off high-capacity loads.
In addition, this structure does not require Arc space, which not only saves space but also ensures safety. At the same time, the contact is not affected.
The impact of the use environment improves the contact reliability.
¡ñ Small size and good design make it not limited in installation direction.
¡ñ equipped with terminal cover and DIN rail adapter required for industrial applications.
¡ñ comply with UL/CSA Standard ul508.
