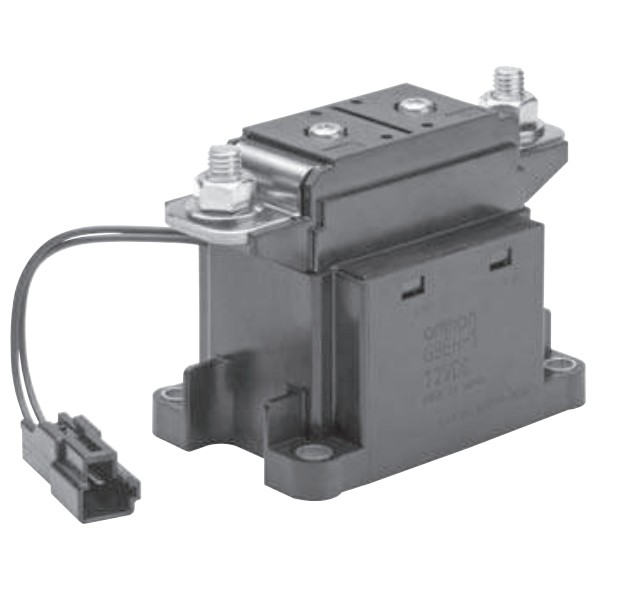

OMRON G9EH series: DC power relay (1 pole/1a contact 300A type) – G9EH-1 DC24V

DC capable of cutting off high voltage and high current
Load DC power relay
? Small relay with a height of 76.7mm ¡Á a width of 60mm ¡Á a length of 111mm, with the maximum switching of contacts
The capacity is 2500A.
? The Switch part and the drive part are inflatable and sealed structures. Although they are small in size, they can be cut off.
High capacity load. In addition, this structure does not require Arc space, which saves space and
Ensure safety. At the same time, the contacts are not affected by the use environment, thus improving the contact reliability.
? Small size and good design make it not limited in installation direction.
