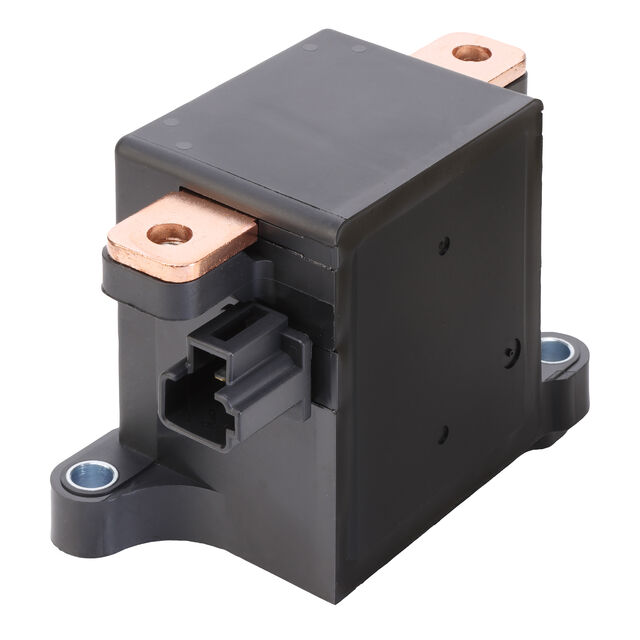

OMRON G9EK series: DC power relay (1 pole/1a contact low voltage action product) – G9EK-1-U DC12V

A gas-free, high-capacity power relay that can help achieve carbon neutrality.
? The opening and closing part has no inflatable and sealing structure, and can still realize large capacity opening and closing of bidirectional DC500V 120A.
? A small size with a height of 64.2mm ¡Á a width of 86mm ¡Á a length of 47.7mm can achieve a maximum DC400V/500A open circuit.
? The coil features a low-power design, helping to reduce energy consumption in the customer¡¯s system.
? Suitable for vibration and shock resistance in the automotive industry.
? UL specification certification products.
