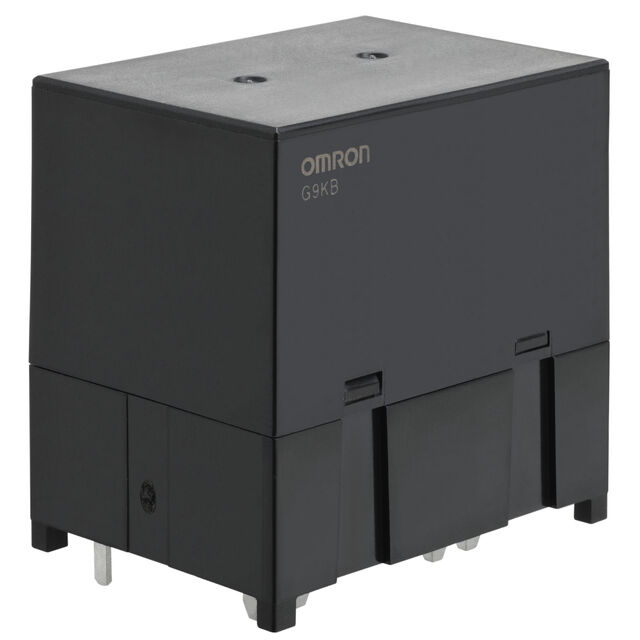

OMRON G9KB series: Power Relay (1 pole/a contact large capacity type) – G9KB-1A-E DC12V

DC600V,50A (standard)/
DC800V,100A * (large capacity) bidirectional opening and closing
Large Capacity Power Relay
* 100A maximum 600VDC when switching
? Maximum open/close voltage DC600V (standard)/DC800V (large capacity)
? Maximum power-on/cut-off current 50A (standard type)/100A (large capacity type)
? The operating environment temperature can reach up to 85¡æ
? Contact spacing above 3.6mm
? Achieve low contact resistance below the initial 5 Mohm
? Obtain UL60947-4-1 and EN61810-10 certification required by battery system, etc.
