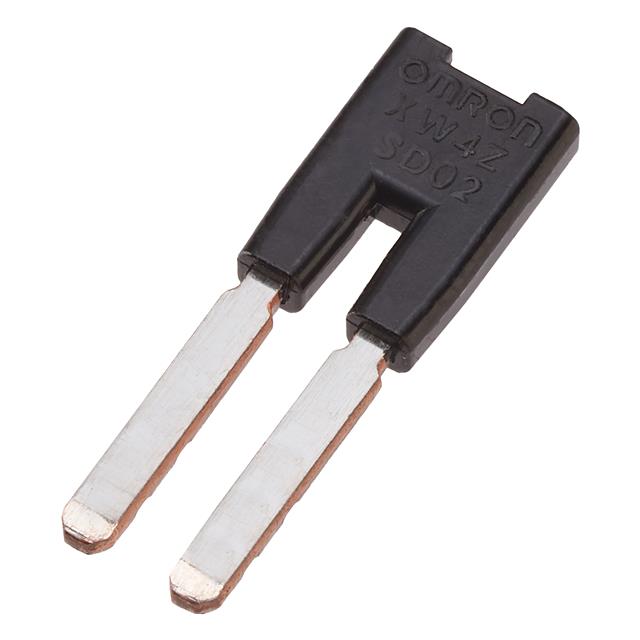

OMRON XW4 series: 3.5mm pitch push-in type terminal block substrate connector (short circuit rod) – XW4Z-SD02-BK

Greatly improve the efficiency of connector insertion and cable wiring
3.5mm pitch push-in terminal block connector for printed circuit boards
• Adopt innovative connector fitting structure, easy insertion and removal and ensure contact reliability.
It is helpful to improve the operation efficiency of “inspection”, “assembly” and “maintenance.
• Reflow soldering can be used for installation to correspond to through-hole reflow soldering.
• The PIN number is engraved on the top of the socket according to the standard, and there is no need to print in other positions such as the substrate.
• Use the hand free mechanism to keep the screwdriver inserted to achieve high wiring efficiency.
• Provide coding keys, short-circuit rods, and disassembling fixtures to prevent incorrect insertion as optional accessories.
