Wide groove embedded installation type
(Slot width: 15mm)
? Supports a wide range of circuit board thickness and metal plate thickness (t = 0.8mm ~ 1.6mm)
? Embedded installation structure without fixing screws, supporting General EI connector produced by Tyco Electronics
Parts to improve maintenance
? Optoelectronic IC output (ON when light is detected)
? Can be directly connected to C- MOS
OMRON EE-SX461-P11: Series

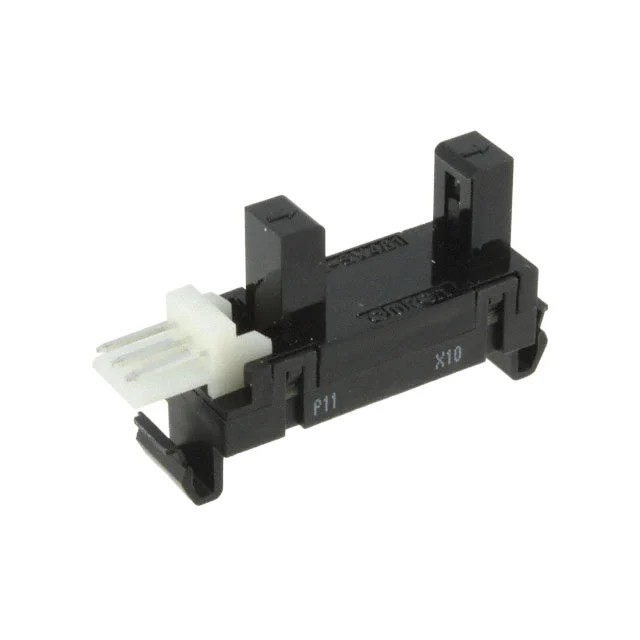

OMRON EE-SX461-P11 series: miniature photoelectric sensor (transparent type ¡¤ wide groove embedded installation ¡¤ 15mm) – EE-SX461-P11
$5.00
Miniature photoelectric sensor (transparent type ¡¤ wide groove embedded installation type),EE-SX461-P11 series,Detection method: transmission type (Groove type),Installation method: the groove is embedded into the installation type (no fixed screws are required),Connection method: connector connection (Tyco Electronics general EI connector),Groove width: 15mm,Aperture Size: luminous side/light receiving side is the same as 2mm,Output form: photoelectric IC (ON when entering light),Action mode: ON when entering light,Power supply voltage: 5V ¡À 10%,Maximum current consumption: 35mA,Response frequency: 3kHz,Applicable plate thickness: 0.8 ~ 1.6mm,Can be directly connected to C- MOS,Shell material: Polycarbonate,Mounting hook body: polyamide,Weight: 3.7g
Availability: 88888888 in stock
